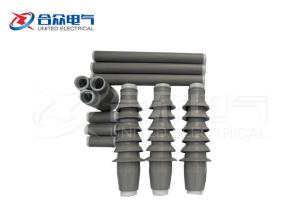

Indoor Cold Shrink Cable Joints 3 termination Joint for Connecting Cable

Name: Indoor Cold Shrink Cable Joints 3 termination Joint for Connecting Cable
Brand: United electrical
Price: 1 USD

Brand Name : United electrical

Model Number : HZ-DL

Certification : ISO9001

Place of Origin : Wuhan

MOQ : 100pcs

Price : Price negotiable

Payment Terms : TT / LC at sight

Supply Ability : 10000 pcs / month

Delivery Time : 20 work days

Packaging Details : Carton with wrapping film and pallet

Material : silicone rubber

termination joint : Insulation sleeving

Usage : Connecting Cable

termination joint Rated Voltage : 8.7/15

application : Naked Cable

Contact Now

Cold Shrinkable Electric Cable Accessories 3 termination Joint Tube Indoor

Product Description

1. Material:silicone rubber

2. Voltage: 1 KV

3. Type: indoor/ outdoor/ connector

4. Core:1 - 5 core

Specifications

Professional and Factory direct
Used Widely,Safe and reliable
Certification authority
Long-life material
Services Thoughtful

Product Dimensions

The size of 12/24kV Cold Shrinkable Indoor Termination for Cable to 35-630mm², Unit in mm
The size of 12/24kV Cold Shrinkable Outdoor Termination for Cable to 35-630mm², Unit in mm
The size of 12/24kV Cold Shrinkable Straight Joint for Cable to 35-630mm², Unit in mm

Product Parameters

Item	Liquid Silicone Rubber/Index	Semi-conductive Material/Index
Tensile Strength(Mpa)	≥7	≥6
Elongation at Break(%)	≥600	≥550
Hardness Shore A	40±5	40-45
Tear Strength(N/mm)	≥35	≥20
Volume Resistivity(Ω.cm)	≥1*10¹⁴	≤10²
Dielectric Constant(50Hz)	2.8-3.2	/
Evaluating Resistance to Tracking at High-Voltage	≥1A3.5	/

Product name	Model	The application of cable section(mm2)
1 KV 1-core cable termination	LM - LS - 1/3 * 1	25 - 50
	LM - LS - 1/3 * 2	70 - 120
	LM - LS - 1/3 * 3	150 - 240
	LM - LS - 1/3 * 4	300 - 400
1 KV 2-core cable termination	LM - LS - 1/3 * 1	25 - 50
	LM - LS - 1/3 * 2	70 - 120
	LM - LS - 1/3 * 3	150 - 240
	LM - LS - 1/3 * 4	300 - 400
1 KV 3-core cable termination	LM - LS - 1/3 * 1	25 - 50
	LM - LS - 1/3 * 2	70 - 120
	LM - LS - 1/3 * 3	150 - 240
	LM - LS - 1/3 * 4	300 - 400

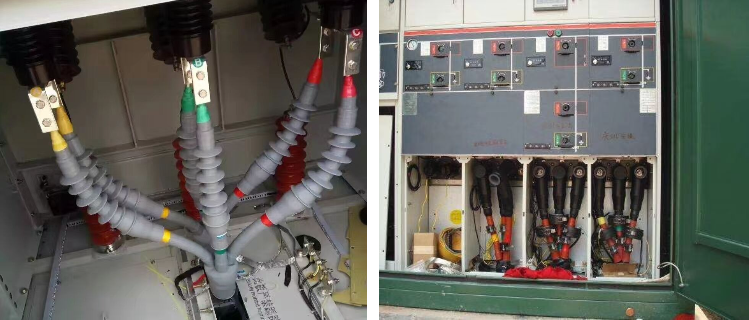

Application of our products in daily life

Indoor Cold Shrink Cable Joints 3 termination Joint for Connecting Cable

Application of our products in daily life
